TABLET CONVENIENCE, LAPTOP PERFORMANCE
The F110 is the solution of choice for field professionals seeking complete office computing capabilities in a tablet form factor, delivering power and rugged performance in challenging environments.
F110 TECHNICAL SPECIFICATIONS
Operating System
|
Windows 11 Pro
|
Mobile Computing Platform
|
Intel® Core™ i5-1335U Processor
Max. 4.6GHz with Intel® Turbo Boost Technology – 12 MB Intel® Smart Cache Platform options:
Intel® Core™ i5-1345U vPro® Enterprise Processor Max. 4.7GHz with Intel® Turbo Boost Technology – 12 MB Intel® Smart CacheIntel® Core™ i7-1355U Processor Max. 5.0GHz with Intel® Turbo Boost Technology – 12 MB Intel® Smart Cache Intel® Core™ i7-1365U vPro® Enterprise Processor |
VGA Controller
|
Intel® UHD Graphics
|
Display
|
11.6″ Wide Viewing Angle TFT LCD FHD (1920 x 1080)
Protection film 1,200 nits LumiBond display with Getac sunlight readable technology Capacitive multi-touch screen |
Storage & Memory
|
8GB DDR5
Optional: 16GB / 32GB DDR4 256GB PCIe NVMe SSD
Optional: 512GB / 1TB / 2TB PCIe NVMe SSD |
Keyboard
|
Power button
4 tablet programmable buttons |
Pointing Device
|
Touchscreen
– Capacitive multi-touch screen – Optional: Dual mode touchscreen (multi-touch and digitizer) |
Expansion Slot
|
Optional(top side): 1D/2D imager barcode reader, or USB 2.0 port, or LAN (RJ45) , or MicroSD, or Serial port + LAN (RJ45) i
Optional(right side): HF RFID reader or Fingerprint reader ii Optional(back side): Smart card reader |
I/O Interface
|
5M webcam iii
8M pixels auto focus rear camera x 1 Audio in/out combo x 1 DC in Jack x 1 USB 3.2 Gen 2 Type-A x 1 Thunderbolt™ 4 Type-C x 1 Docking connector x 1 Optional: SIM card slot x 1 (Micro-SIM, 3FF) v Optional: Windows Hello face-authentication 5M camera (front-facing) x 1 iii Optional: RF antenna pass-through for GPS, WWAN, and WLAN, or GPS, WWAN main, and WWAN AUX |
Communication Interface
|
Intel® Wi-Fi 6E AX211, 802.11ax
Bluetooth (v5.3) iv Optional: 10/100/1000 base-T Ethernet Optional: Dedicated GPS Optional: 4G LTE mobile broadband with integrated GPS v, vi Optional: 5G Sub-6 with integrated L1/L5 GPS v, vi Dual SIM (Micro-SIM 3FF and e-SIM) v |
Security Feature
|
TPM 2.0
Kensington lock Optional: Intel® vPro® Technology Optional: HF RFID Reader ii, vii, or Smart Card Reader, or Fingerprint Reader ii Optional: Windows Hello face-authentication 5M camera (front-facing) iii |
Power
|
AC adapter (65W, 100-240VAC, 50/60Hz)

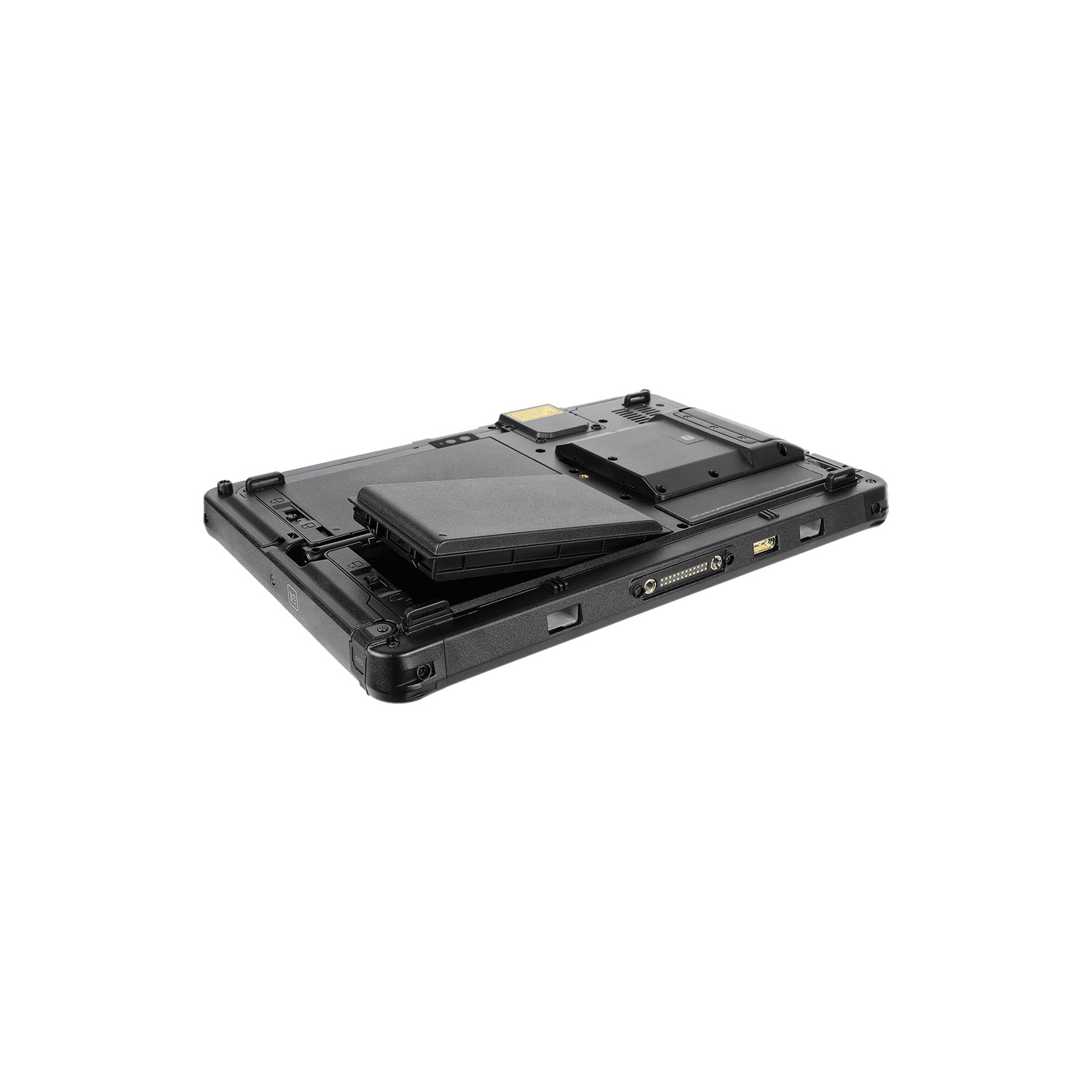

Li-ion battery (11.4V, typical 2680mAh; min. 2640mAh) x 2 LifeSuppor battery swappable technology Optional: High capacity Li-ion battery (11.1V, typical 4200mAh; min.4080mAh) x 2 |
Dimension (W x D x H) & Weight
|
314 x 207 x 25mm (12.4″ x 8.15″ x 0.98″)
1.49kg (3.29lbs) viii |
Rugged Feature
|
MIL-STD-810H certified
IP66 certified MIL-STD-461G certified ix Vibration & 6ft (1.8m) drop resistant x Optional: ANSI/UL 121201, CSA C22.2 NO. 213 (Class I, Division 2, Groups A, B, C, D) xi Optional: Salt fog certified |
Environmental Specifications
|
Temperature xii :
– Operating: -29°C to 63°C / -20°F to 145°F – Storage: -51°C to 71°C / -60°F to 160°F Humidity: – 95% RH, non-condensing |
Pre-installed Software
|
Getac Utility
Getac Camera Getac Geolocation Getac Barcode Manager xiii Getac Driving Safety Utility (trial version) Getac KeyWedge Barcode Reader Utility (trial version) Optional: Absolute Persistence® |
Optional software
|
Getac Driving Safety Utility
Getac KeyWedge Barcode Reader Utility Getac Device Monitoring System (GDMS) Getac VGPS Utility xiv |
Accessories
|
Battery (11.4V, typical 2680mAh; min. 2640mAh)
AC adapter (65W, 100-240VAC, 50 / 60Hz) Capacitive stylus with tetherOptional: Carry bag Battery (11.4V, typical 2680mAh; min. 2640mAh) High capacity Li-ion battery (11.1V, typical 4200mAh; min.4080mAh) Multi-Bay charger (Dual-Bay) Multi-Bay charger (Eight-Bay) AC Adapter (90W, 100-240VAC, 50 / 60Hz) AC adapter (65W, 100-240VAC, 50 / 60Hz) Office dock AC adapter (90W, 100-240VAC) MIL-STD-461 AC adapter (90W, 100-240VAC) DC-DC vehicle adapter (120W, 11-32VDC) Digitizer pen Capacitive stylus with tether Protection film Hard handle Hand strap Shoulder strap (2-point) Shoulder harness (4-point; handsfree) Detachable keyboard Vehicle cradle xv Vehicle dock xv Office dock Spare SSD kit 100W Type-C adapter Getac rugged keyboard |
Bumper-to-Bumper Warranty
|
Accidents can take your equipment out of service when you least expect it, especially in a rugged environment, which can cause costly equipment downtime.
That is why Getac has introduced accidental damage as standard under our Bumper-to-Bumper warranty, to help minimize your enterprise IT costs. Bumper-to-Bumper is your hassle-free guarantee. That means you can depend on us to have your unit back in service within days. Standard 3 years Bumper-to-Bumper |
i. 1D/2D imager barcode reader, USB 2.0 port, LAN (RJ45), MicroSD, Serial port + LAN (RJ45) are mutually exclusive options.
ii. HF RFID reader and fingerprint reader are mutually exclusive options
iii. 5M webcam and optional Windows Hello face-authentication 5M camera (front-facing) are mutually exclusive options.
iv. Bluetooth performance and connectable distance may be subject to interference with the environments and performance on client devices, users may be able to reduce effects of interference by minimizing the number of active Bluetooth wireless devices that is operating in the area.
v. One physical SIM card slot and one eSIM. Network service may vary depending on local telecommunication providers.
vi. Support GPS, GLONASS, Galileo, BeiDou and QZSS. Only available in USA, UK, EU, Australia, and New Zeland
vii. 13.56MHz HF RFID reader (ISO 15693, 14443 A/B, Mifare and FeliCa™ compliant).
viii. Weight and dimensions vary from configurations and optional accessories; optional high-capacity batteries add approx. 6mm (H), 0.24kg.
ix. MIL-STD-461 90W AC adapter sold separately.
x. Drop test results vary from configurations and optional accessories.
xi. Available with limited configurations and environment conditions.
xii. Tested by an independent third-party test lab following MIL-STD-810H.
xiii. Available when barcode reader option is selected.
xiv. Models require either embedded or standalone GPS module.
xv. Gamber Johnson and Havis vehicle docks are e-mark certified.
Information provided herewith is for reference only, available specification shall be subjected to quotation by request.
